Description

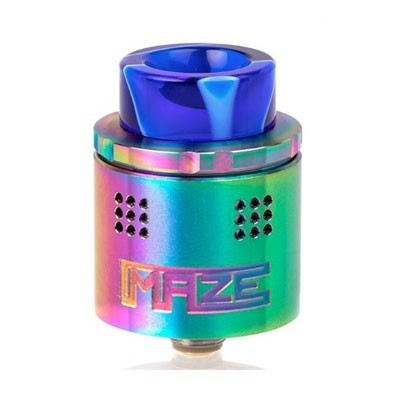

Vandy Vape Maze BF RDA: a 24mm Dripper That Uses Ready-Made Coils
The Vandy Vape Maze is a 24mm bottom-feed dripper that doesn’t need you to build coils: it takes Vandy Vape’s pre-wicked Maze coil heads, 0.2Ω and rated 50 to 100W, best at 70 to 80W.
It holds 2ml, fills from the top, and comes with the bottom-feed pin fitted for squonk mods and a standard 510 pin in the box for everything else. Five airflow directions heat the coil evenly, and the airflow design is there to stop spit-back.
🔌 Vandy Vape Maze RDA at a Glance
✔ 24mm diameter
✔ 2ml
✔ Pre-wicked 0.2Ω Maze coils
✔ 50–100W, best 70–80W
✔ Bottom-feed pin fitted, 510 pin included
✔ Top fill
Maze RDA Specifications
From Vandy Vape’s specification and the box contents.
| Spec | Detail |
|---|---|
| Diameter | 24mm |
| Capacity | 2ml |
| Coil | Maze coil: SS316L, Japanese cotton, PEEK insulator |
| Resistance | 0.2Ω |
| Power | 50–100W, best 70–80W |
| In the box | RDA, 2 Maze coils, resin drip tip, 510 pin, refill tube, accessory bag, manual |
What Mods Suit the Maze?
Regulated 510 mods that reach 70 to 80W, and bottom-feed squonk mods with the BF pin. Vandy Vape says it’s mechanical-mod compatible, but at 0.2Ω that’s for experienced users only.
The Maze needs a cell that can take the current: the Vapcell K25 is rated 20A, so we’d keep a single K25 to about 60W and run the Maze at the bottom of its range, or use a dual-battery mod.
Will not fit: mods that can’t reach 50W, where the 0.2Ω coil won’t perform.
How to Set Up the Maze
- Choose the pin: the bottom-feed pin is fitted for squonk mods; swap in the 510 pin for a standard mod.
- Screw in a Maze coil head.
- Prime the cotton through the coil with a few drops.
- Fill through the top, or squonk from below.
- Start at 70W and adjust.
How Long Does a Maze Coil Last?
Vandy Vape doesn’t publish a figure. Change the coil head when the flavour fades or turns burnt. We don’t currently list replacement Maze coils, so keep the spare from the box.
Maze Troubleshooting
| Problem | Likely cause and fix |
|---|---|
| Burnt taste | The cotton isn’t primed, or the power is too high. Stay within 50 to 100W. |
| Spitting | Too much e-liquid. Fill less. |
| Leaking | Overfilled, or the coil isn’t screwed in fully. |
| Squonk won’t feed | Check the bottom-feed pin is fitted, not the 510 pin. |
Safety and E-Liquids
Before you fire any build, read its resistance on a regulated mod and check your battery can take the current. Current is voltage divided by resistance: a fully charged cell at 4.2V across a 0.2Ω build draws 21A, more than many 18650s are rated for. If you’re not sure, bring the atomiser in and we’ll read it for you. Use high-VG shortfills: thin e-liquid floods a 0.2Ω coil.
Buy the Vandy Vape Maze Near You
Need the Vandy Vape Maze today? Our Totton vape shop, Hythe vape shop and Holbury vape shop stock RDAs, coil-building tools, wire and cotton, and the team can check which resistance suits your device and e-liquid. We’ll help you set it up for squonk or 510. Stock varies by store, so give us a call before you travel. Ordering online instead? See our delivery options.
You May Also Like
Frequently Asked Questions
Does the Maze RDA need building?
No. It uses pre-wicked Maze coil heads.
What wattage for the Maze coil?
50 to 100W, best 70 to 80W, per Vandy Vape.
Is the Maze squonk compatible?
Yes. The bottom-feed pin is fitted; a 510 pin is included for standard mods.
What capacity is the Maze?
2ml.
Can I use the Maze on a mechanical mod?
Vandy Vape says yes, but at 0.2 ohm it’s for experienced users only.
