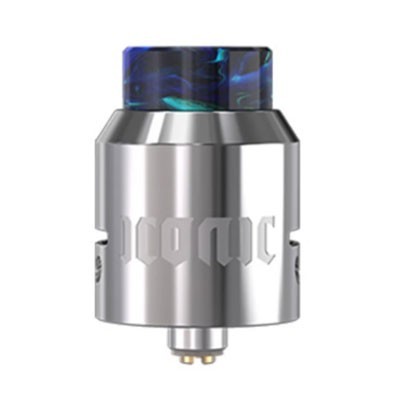

Vandy Vape Iconic RDA: the 24mm Clamp Dripper Designed With Mike Vapes
Vandy Vape designed the Iconic with Mike Vapes: a 24mm stainless dripper with a two-post clamp deck. The coil leads sit on open terminal shelves under top-mounted screws, and the terminals are staggered so dual-coil builds line up easily.
Air comes in through horizontal side slots and angled bottom air tubes. A squonk pin is included, so it works on a bottom-feed mod as well as a standard 510.
🔌 Vandy Vape Iconic RDA at a Glance
✔ 24mm diameter
✔ Two-post clamp deck
✔ Staggered terminals
✔ Side and bottom airflow
✔ Squonk pin included
✔ Designed with Mike Vapes
Iconic RDA Specifications
From retailers’ listings of the Iconic.
| Spec | Detail |
|---|---|
| Diameter | 24mm |
| Build | Stainless steel |
| Deck | Two-post clamp, staggered terminals, top-mounted screws |
| Airflow | Horizontal side slots and angled bottom tubes |
| Squonk | Squonk pin included |
| In the box | RDA, three drip tips, spare 510 pin, squonk pin, coils, tools, spares, manual |
What Mods Suit the Iconic?
Any 510 mod with room for a 24mm atomiser, and bottom-feed squonk mods with the squonk pin fitted.
To build on it you’ll want Ni80 wire, cotton and a coil jig.
How to Build the Iconic
- Wrap your coil on a jig, then fit it into the posts and tighten the screws.
- Trim the leads flush with cutters.
- Read the resistance on a regulated mod, then pulse at low power and squeeze out any hot spots with ceramic tweezers.
- Thread cotton through the coil, trim it, and tuck the tails into the well.
- Prime the cotton with e-liquid, fit the cap and start low.
How Long Does a Build Last?
A wire build lasts months; the cotton is the consumable. Re-wick when the flavour dulls or turns burnt.
Iconic Troubleshooting
| Problem | Likely cause and fix |
|---|---|
| Coil moves when you tighten it | Hold the coil on the jig while you tighten the clamp. |
| Dry hits | Drip more often, or add cotton to the well. |
| Spitting | Too much e-liquid, or the coil sits too low. |
| Mod reads no atomiser | Check the pin and that both clamps are tight. |
Safety and E-Liquids
Before you fire any build, read its resistance on a regulated mod and check your battery can take the current. Current is voltage divided by resistance: a fully charged cell at 4.2V across a 0.2Ω build draws 21A, more than many 18650s are rated for. If you’re not sure, bring the atomiser in and we’ll read it for you.
Buy the Vandy Vape Iconic Near You
Need the Vandy Vape Iconic today? Our Totton vape shop, Hythe vape shop and Holbury vape shop stock RDAs, coil-building tools, wire and cotton, and the team can check which resistance suits your device and e-liquid. Ask us to show you a clamp-post build. Stock varies by store, so give us a call before you travel. Ordering online instead? See our delivery options.
You May Also Like
Frequently Asked Questions
What size is the Iconic RDA?
24mm.
Is the Iconic squonk compatible?
Yes. A squonk pin is included.
Who designed the Iconic RDA?
Vandy Vape, with Mike Vapes.
Single or dual coil?
Either: the two-post clamp deck takes both.
Does the Iconic come with coils?
Yes, a pair of coils is included.
