Description
Geekvape Aegis Hero 5 Pod Kit: 50W, 2000mAh and B Boost Coils
The Geekvape Aegis Hero 5 is the fifth Hero pod mod: a compact, shockproof Aegis body with a 2000mAh battery, 5–50W of adjustable power, a colour display and GeekVape’s new A-Lock switch, running replaceable Geekvape B Series coils. In the UK it comes with a 2ml top-fill Hero cartridge and two B coils in the new Boost version – a 0.4Ω fitted and a 0.2Ω spare – so it handles a restricted lung hit and a full direct-to-lung vape straight out of the box.
Compared with the Aegis Hero 2 (H45) it replaces, GeekVape quotes more than 40% extra battery, 5W more power and the longer-life Boost coil. It’s a tough step up from a disposable or basic pod, and a straight upgrade for Hero and H45 owners. Below: specs, which B coil to use, what fits, setup, battery, troubleshooting and the Hero 5 vs H45. For a hands-on verdict, read our Aegis Hero 5 review and coil guide.
🔌 Geekvape Aegis Hero 5 at a Glance
✔ 2000mAh built-in battery
✔ Type-C charging at 5V/2A
✔ 5–50W adjustable output

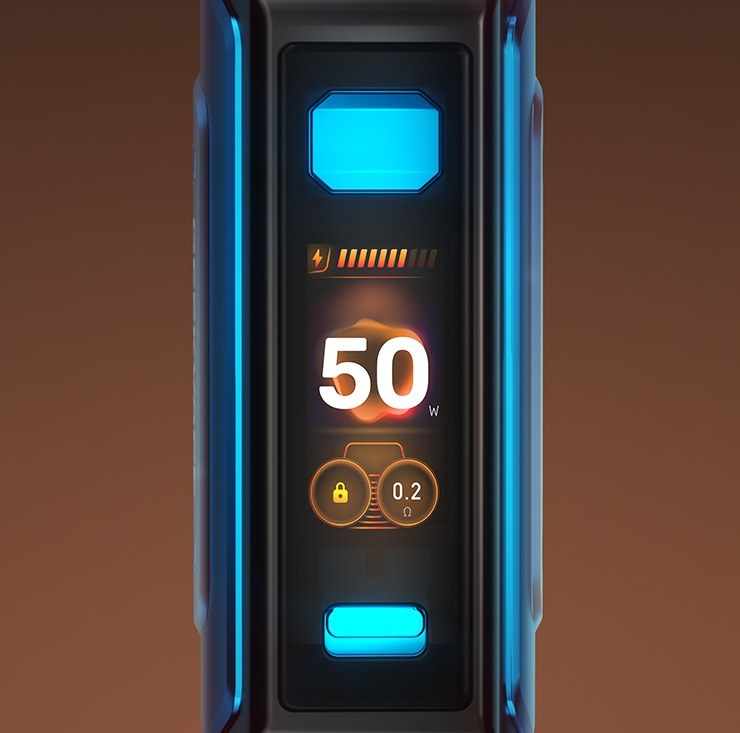

✔ Colour display
✔ A-Lock switch against accidental firing
✔ Shockproof Aegis body
✔ B Series coils from 0.2Ω to 1.2Ω
✔ 2ml top-fill Hero cartridge
Geekvape Aegis Hero 5 Specifications
GeekVape’s own figures for the Hero 5, with the UK cartridge:
| Specification | Aegis Hero 5 |
|---|---|
| Battery | 2000mAh built-in |
| Charging | Type-C, 5V/2A |
| Output | 5–50W |
| Coils supported | B Series: 0.2Ω, 0.3, 0.4, 0.6, 0.8 and 1.2 |
| Cartridge | Aegis Hero cartridge, 2ml, top fill, coil not included |
| Coils in the box | B0.4 Boost (25–35W, fitted) and B0.2 Boost (50–58W, spare) |
| Safety | A-Lock switch, shockproof design |
| Size | 45.5 x 30.7 x 94.5mm |
Which Cartridge and Coils Fit the Aegis Hero 5?
The Hero 5 is a pod mod with a replaceable coil, so there are two parts to keep spare: the cartridge and the coils.
Spare cartridges are the Geekvape Aegis Hero 5 cartridge: empty, 2ml and top-fill, with no coil inside, so you move your coil across or fit a fresh one. GeekVape lists the Aegis Hero cartridge among the parts its B coils are made for.
Every Geekvape B Series coil the Hero 5 supports fits, from 0.2Ω to 1.2Ω. GeekVape says any device that took the older B coil takes the new Boost version, which lasts about twice as long, so coils from an Aegis Hero or H45 aren’t wasted.
Will not fit: Geekvape Z or Z XM coils – those are for Geekvape’s Z sub-ohm tanks on the Aegis box mods, not the Hero cartridge.
Setting Up the Aegis Hero 5
- Charge it first over Type-C – it takes 5V/2A.
- Pull the cartridge out, open the top-fill port and fill it, leaving a small air gap at the top.
- Give a new coil 3–5 minutes to soak before the first puff – that’s GeekVape’s own priming advice. A few drops of liquid straight onto the coil’s wicking holes before you fit it speeds things up.
- Refit the cartridge, switch on and set a wattage at the bottom of the coil’s range, then work up.
- Flick the A-Lock on before the Hero 5 goes into a pocket or bag.
Aegis Hero 5 Battery Life and Charging
At 2000mAh, the Hero 5 carries over 40% more charge than the 1400mAh H45, and it refills over Type-C at 5V/2A. How long it lasts depends almost entirely on the coil. An MTL coil at 12–16W barely touches the battery, and most people on nic salts get well past a day; the 0.4Ω at around 30W is a comfortable full day for most; and the 0.2Ω at 50W+ is thirsty, so heavy direct-to-lung vapers should expect to top up by the evening.
Aegis Hero 5 Troubleshooting
| Problem | Likely cause and fix |
|---|---|
| Burnt taste from a new coil | It wasn’t primed long enough, or the wattage is above the coil’s range. Wait 3–5 minutes after filling and start low. |
| Fire button does nothing | The A-Lock is on – slide it off. |
| Coil wearing out fast | Usually too much power, or a very sweet or thick liquid. GeekVape notes high-VG liquid wicks more slowly, so keep the wattage in range. |
| Flavour fading | Time for a new coil. Replace it when the taste dulls or turns burnt. |
Aegis Hero 5 vs Aegis Hero 2 (H45)
| Aegis Hero 5 | Aegis Hero 2 (H45) | |
|---|---|---|
| Battery | 2000mAh | 1400mAh |
| Output | 5–50W | 5–45W |
| Coils | B Series, Boost version included | B Series |
| A-Lock | Yes (new on the Hero 5) | No |
| Size | 45.5 x 30.7 x 94.5mm | 43.1 x 28.6 x 91.05mm |
The Hero 5 is a few millimetres bigger to make room for the extra battery, and it keeps the same B coil family, so coils you already own will fit.
Which B Coil Should You Use?
GeekVape’s wattage ranges for the B coils the Hero 5 supports, with our pick for each:
| Coil | Wattage | Vape style | E-liquid |
|---|---|---|---|
| B0.2 Boost | 50–58W | Direct to lung | 3mg or 6mg shortfills |
| B0.3 Boost | 30–38W | Direct to lung | 3mg or 6mg, 70/30 |
| B0.4 Boost | 25–35W | Restricted lung | 10mg salts or 50/50 |
| B0.6 Boost or MTL | 15–25W | Restricted lung or MTL | 10mg salts |
| B0.8 MTL | 12–16W | Mouth to lung | 20mg nic salts |
| B1.2 MTL | 8–12W | Tight MTL | 20mg nic salts |
The Boost versions are GeekVape’s new generation, which it says last about twice as long as the previous B coil.

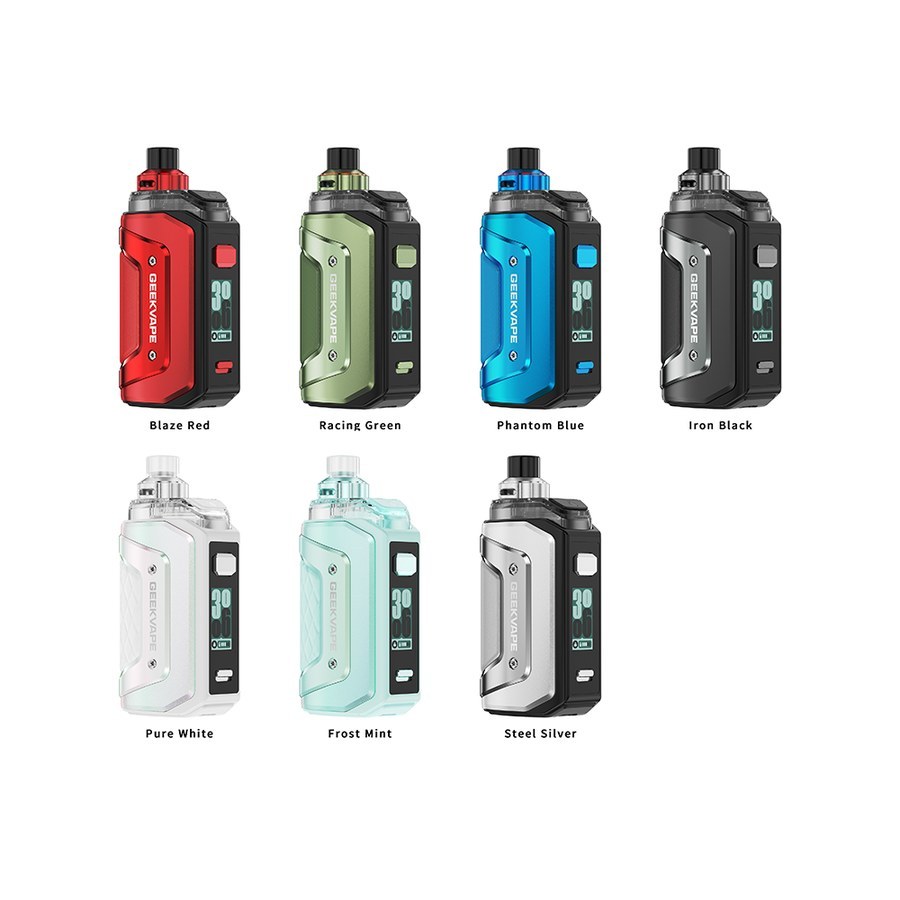

Aegis Hero 5 Colours

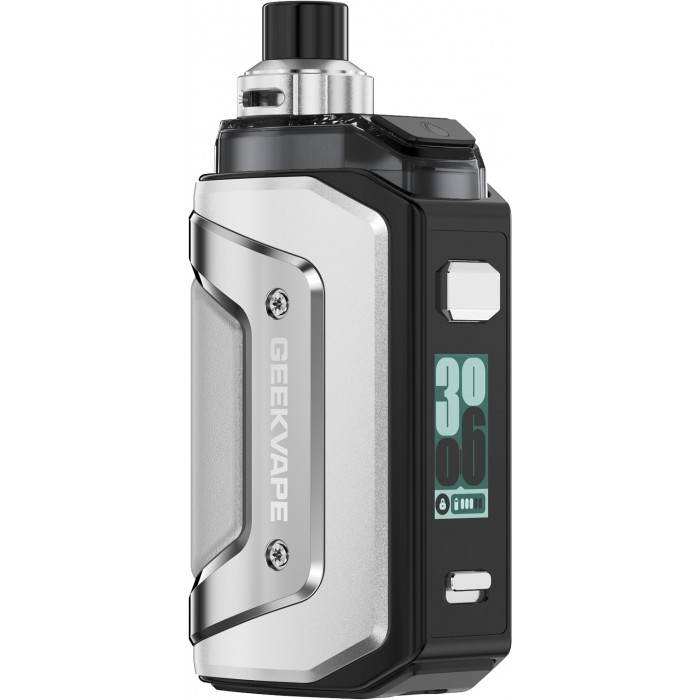

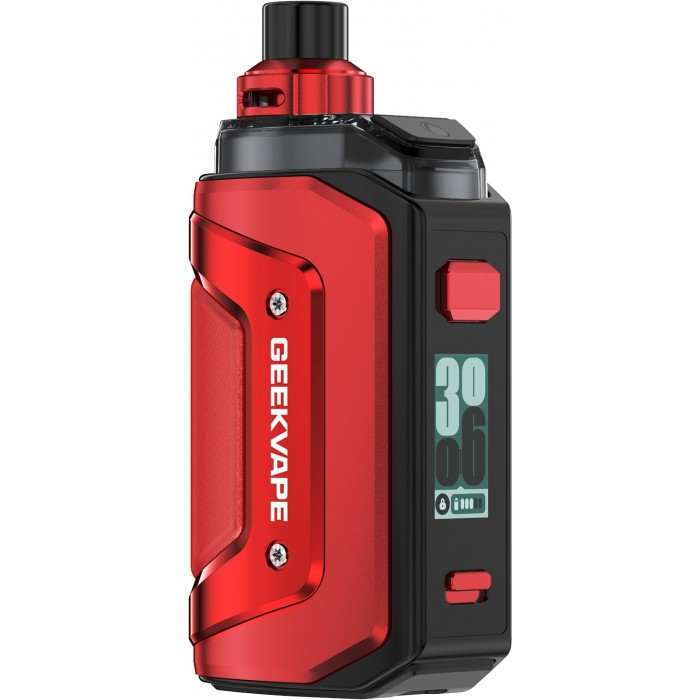

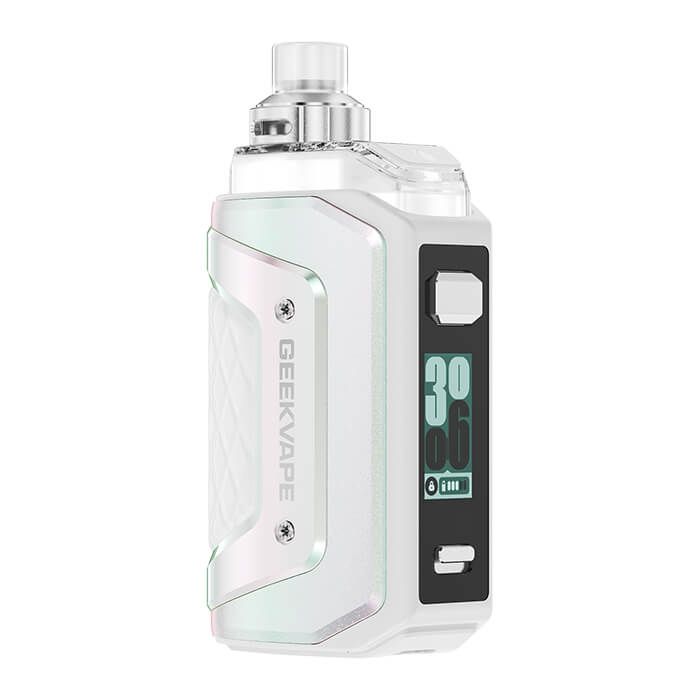

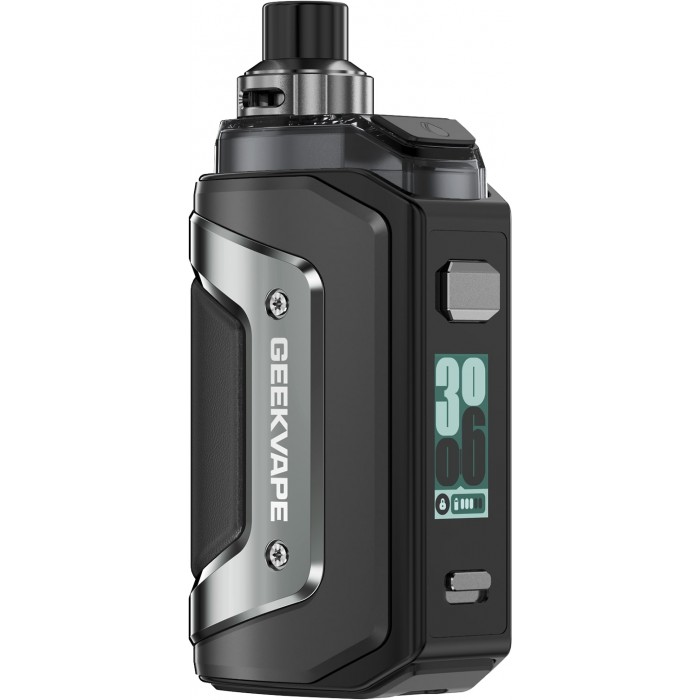

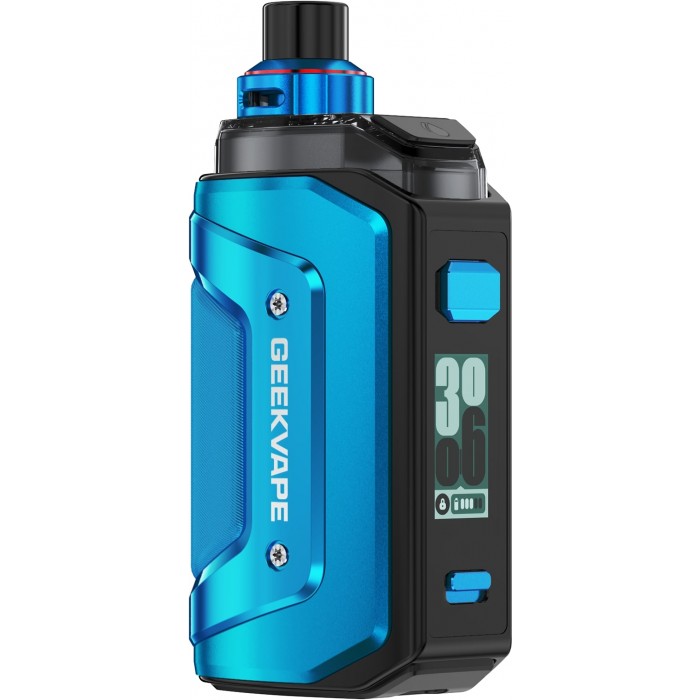

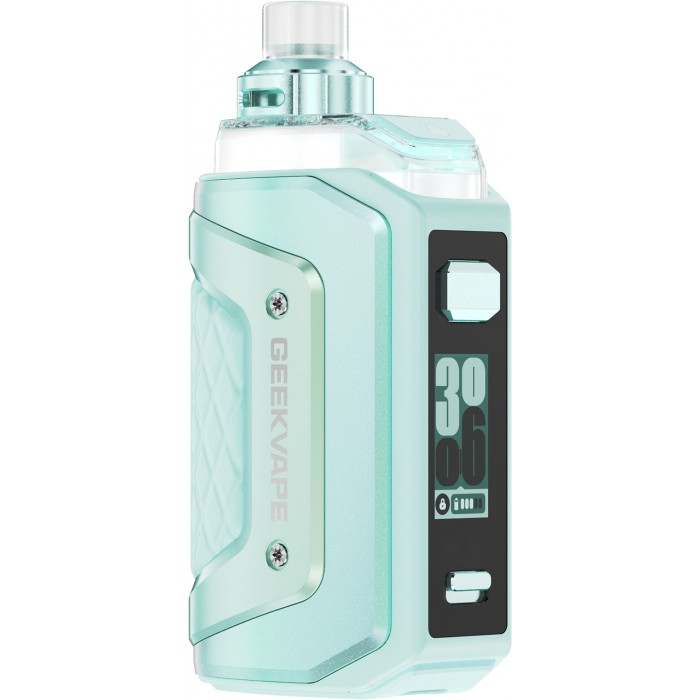

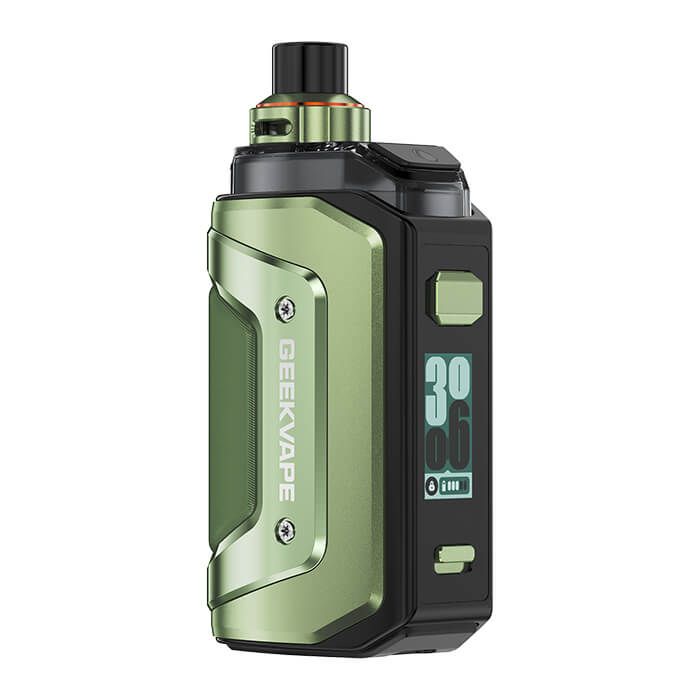

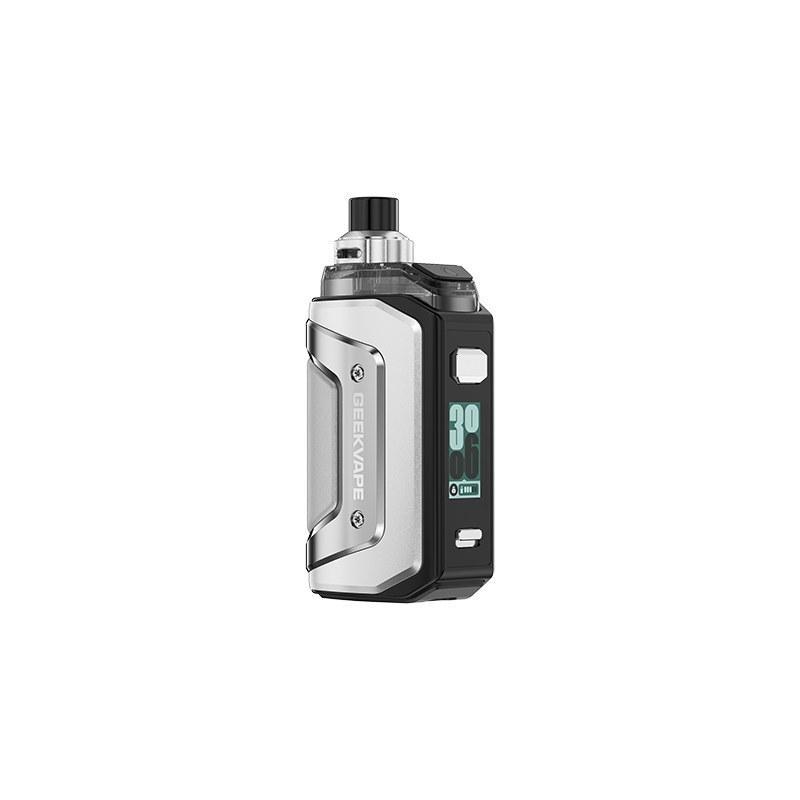

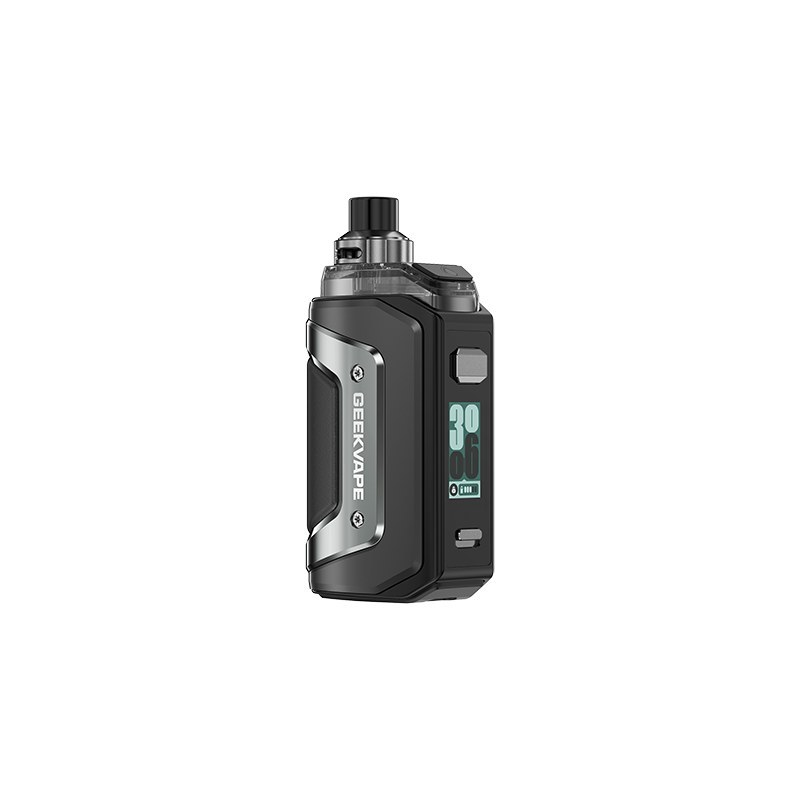

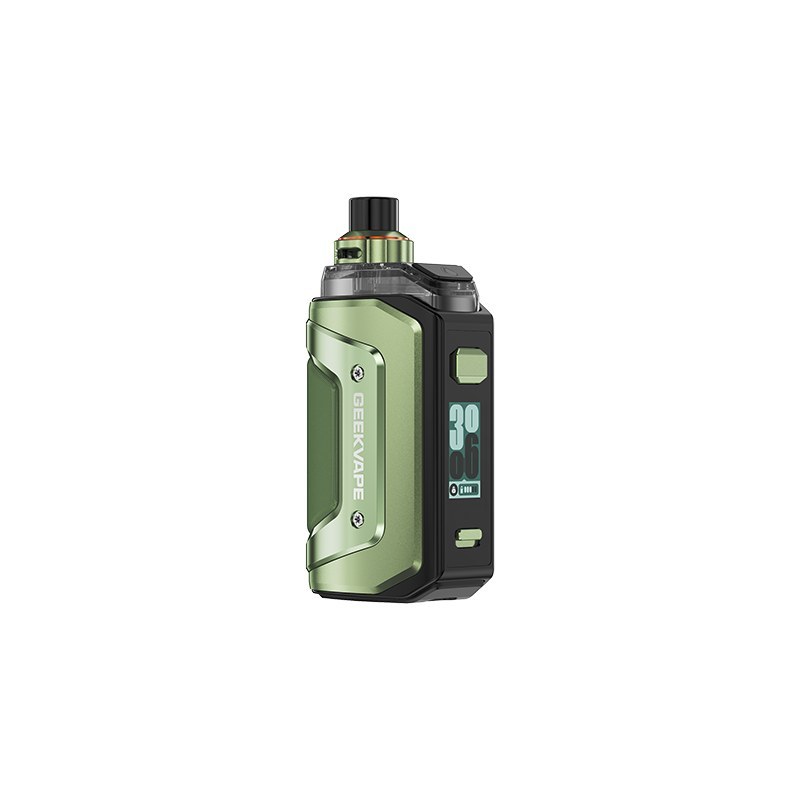

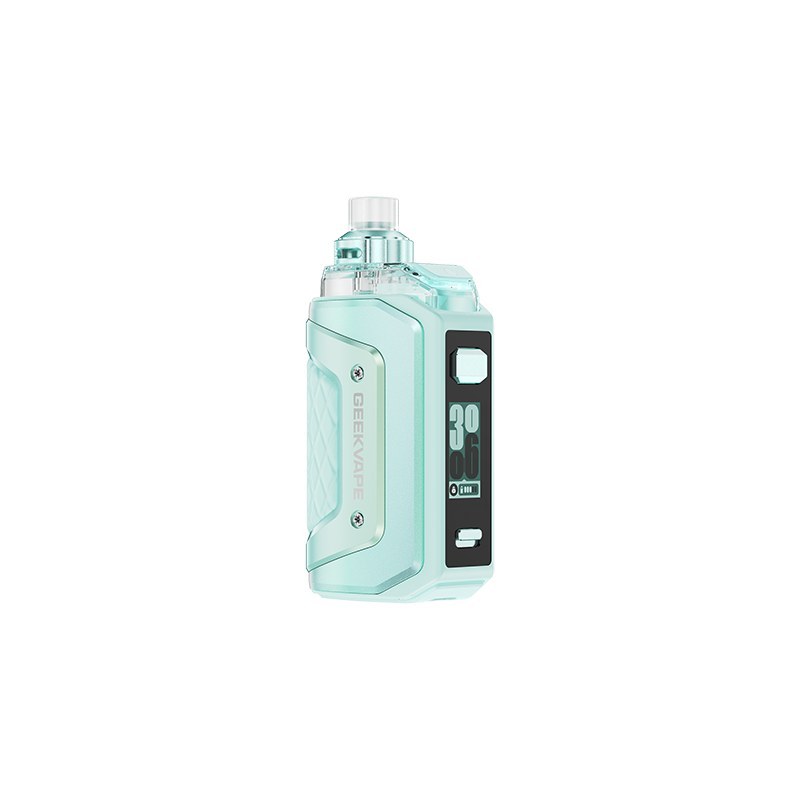

GeekVape makes the Standard Edition in Red and White, Blaze Red, Steel Silver, Iron Black, Racing Green, Turbo Blue, Frost Mint and Pure White, plus five Racing Edition finishes. We stock Blaze Red, Frost Mint, Iron Black, Pure White, Steel Silver, Turbo Blue and Racing Green; the colour options above show live stock.
What’s in the Box
One Aegis Hero 5, an Aegis Hero cartridge (2ml), a B0.4Ω Boost coil (25–35W, fitted), a B0.2Ω Boost coil (50–58W, spare), a Type-C cable, a user manual and warning cards.
Best E-Liquids for the Aegis Hero 5
Match the liquid to the coil. On the MTL coils, 20mg nic salt e-liquids give the throat hit ex-smokers expect. On the 0.4Ω and 0.6Ω, drop to 10mg salts or 50/50 10ml e-liquids. On the 0.2Ω and 0.3Ω you’re vaping direct to lung, so use 3mg or 6mg shortfill e-liquids with a nic shot. Not sure which nicotine type suits you? Read nic salts vs freebase.
Try the Aegis Hero 5 in Store
Need the Geekvape Aegis Hero 5 today? Our Totton vape shop, Hythe vape shop and Holbury vape shop stock replacement pods, coils and kits, and the team can check which resistance suits your device and e-liquid. We’ll fit the right B coil for your e-liquid and show you the A-Lock. Stock varies by store, so give us a call before you travel. Ordering online instead? See our delivery options.
You May Also Like
- Geekvape B Series Coils
- Geekvape Aegis Hero 5 Empty Cartridge
- Aegis Hero 5 Bundle Deal
- Geekvape Aegis Hero 5 Review
- All Geekvape Vapes
Frequently Asked Questions
Is the Geekvape Aegis Hero 5 good?
For a tough pod mod that does MTL through to DTL, yes – 50W, a 2000mAh battery and the long-life B Boost coils in a shockproof body. Our Hero 5 review has the detail.
What coils does the Aegis Hero 5 use?
Geekvape B Series coils, from 0.2Ω to 1.2Ω, including the Boost versions.
Is the Aegis Hero 5 waterproof?
GeekVape describes it as shockproof but doesn’t give it an IP water rating, so treat it as tough rather than waterproof. For IP68, look at the Aegis box mods.
Do H45 pods fit the Hero 5?
GeekVape doesn’t list the H45 cartridge for the Hero 5, so we won’t promise it. Use the Aegis Hero 5 cartridge – your B coils move across either way.
Which coil comes fitted?
The B0.4Ω Boost coil, with a B0.2Ω Boost coil as a spare.
Can the Hero 5 do mouth to lung?
Yes – fit a B0.8Ω or B1.2Ω MTL coil and run it at 8–16W with nic salts.
What is the difference between the Aegis Hero 5 and the H45?
The Hero 5 has 2000mAh against 1400mAh, 50W against 45W, the new A-Lock switch and the B Boost coils.
