Vaporesso Armour MAX KIT

Vaporesso ARMOUR MAX Kit: 220W Dual 21700 Mod with iTank 2

The Vaporesso ARMOUR MAX is the heavyweight of the ARMOUR range: a 5–220W box mod that takes two 21700 batteries, or two 18650s with the sleeves supplied, wrapped from mod to tank in shock-absorbing TPU. It’s built for experienced direct-to-lung vapers who want power in reserve, a full set of modes and a device that shrugs off drops and scratches.

The kit pairs the mod with Vaporesso’s iTank 2 sub-ohm tank and two GTi mesh coils, 0.2Ω and 0.4Ω. Vaporesso says the MAX delivers 54% more power than a dual-18650 mod while being 10% smaller than other dual-21700 mods. Below: specs, modes, battery advice, which coils and tanks fit, setup, troubleshooting, how it compares with the ARMOUR S and ARMOUR ULTRA, colours and box contents.

Vaporesso ARMOUR MAX Specifications

From Vaporesso’s ARMOUR MAX page:

Which Coils and Tanks Fit the ARMOUR MAX?

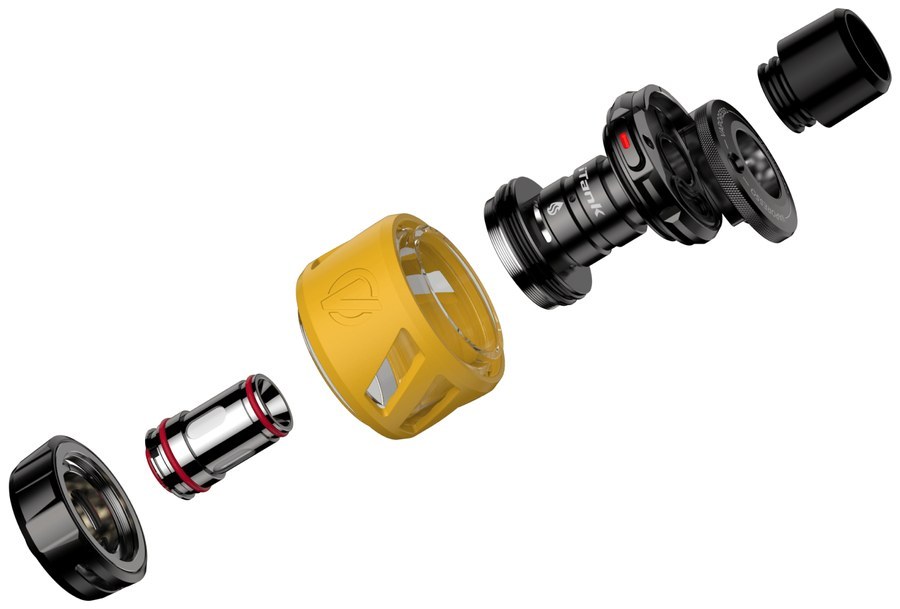

Vaporesso pairs the ARMOUR MAX with two GTi-coil tanks: the iTank 2 in this kit, and the newer iTank T.

The iTank 2 in the kit takes our Vaporesso GTi coils 5 pack: the 0.2Ω and 0.4Ω from the box, the 0.15Ω for 75–90W and the 0.5Ω for a cooler 30–40W vape. Vaporesso says the iTank 2 is compatible with the whole GTi range.

For a replacement tank, the Vaporesso iTank 2 is the like-for-like. Vaporesso now also sells the ARMOUR MAX with the top-airflow Vaporesso iTank T, so that’s the upgrade; it takes the same GTi coils and fills by sliding the top open.

Will not fit: GTX coils, which are a separate platform from GTi.

Getting Started with the ARMOUR MAX

1. Press the one-key release to open the battery door and fit two charged cells – 21700s straight in, or 18650s in the supplied sleeves. Use a matched pair and follow the polarity marks.
2. The GTi 0.2Ω coil comes fitted in the iTank 2. Press the top of the tank so the fill port opens, fill it and close it.
3. Leave the coil to soak for five minutes before firing.
4. Set 60W for the 0.2Ω (or 50W for the 0.4Ω) and adjust from there; pick F(t), Pulse or Eco if you want the chip to shape the output.
5. Fire with the Uni-Lock button, and use its lock function before the mod goes into a bag.

ARMOUR MAX Batteries and Charging

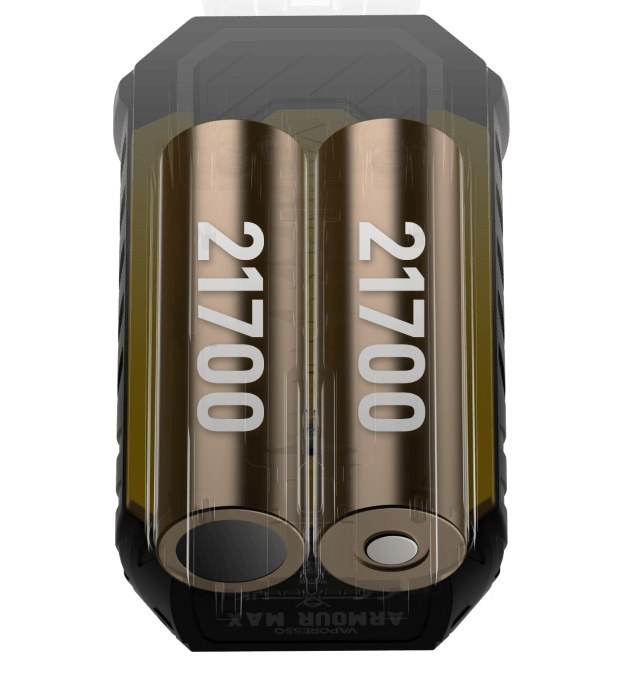

The MAX has no built-in battery, so its stamina is down to the cells you choose. Two 21700s carry considerably more energy than two 18650s and are what Vaporesso designed it around; the 18650 sleeves are there if you already own cells. Always use a matched pair of the same brand, age and charge, bought from a reputable source. You can charge in the mod at 5V/2A over Type-C, but an external charger from our battery chargers range balances the cells better and lets you keep a spare set ready. Pulse mode adds punch; Eco mode helps a charge go further.

ARMOUR MAX Troubleshooting

ARMOUR MAX vs ARMOUR S vs ARMOUR ULTRA

One cell and 100W is plenty for most people: see the ARMOUR S kit. For no batteries to buy and the toughest body, see the ARMOUR ULTRA.

Built to Take a Knock

Every surface of the MAX, and the protector around the tank glass, is TPU – a tough, slightly soft plastic that absorbs impacts and resists scratches. Vaporesso built it for drop and scratch resistance rather than water, so keep it out of the rain; if you need a mod that’s certified waterproof and drop-tested, that’s the ARMOUR ULTRA.

ARMOUR MAX Colours

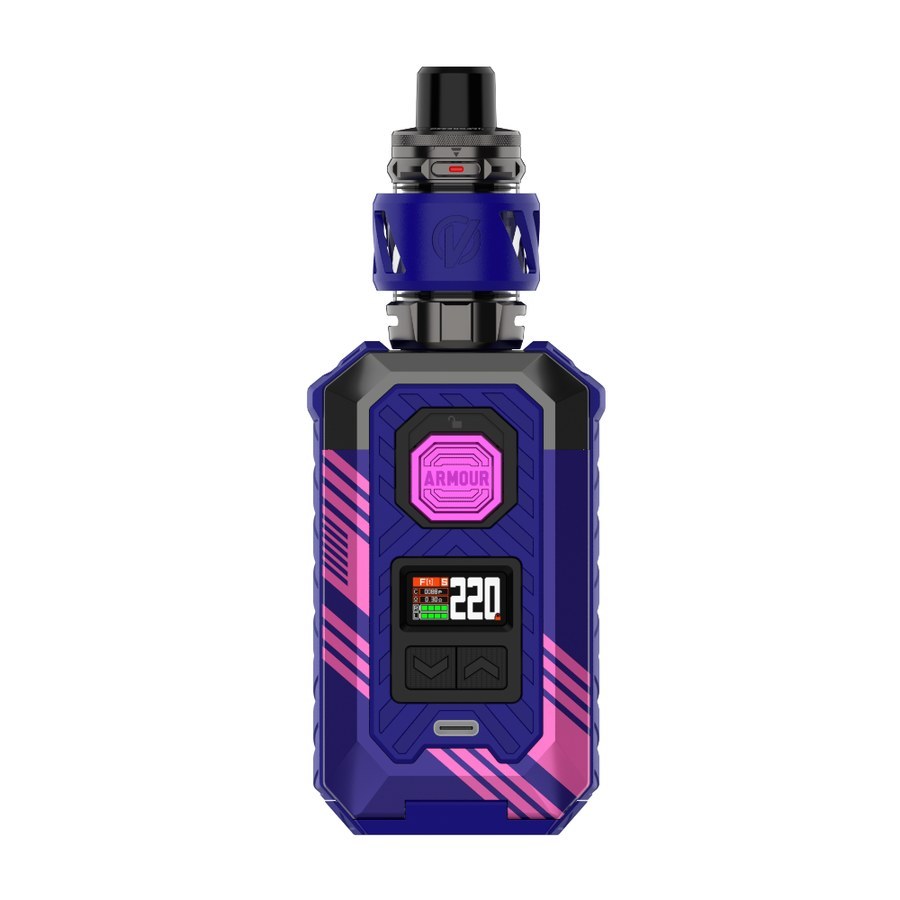

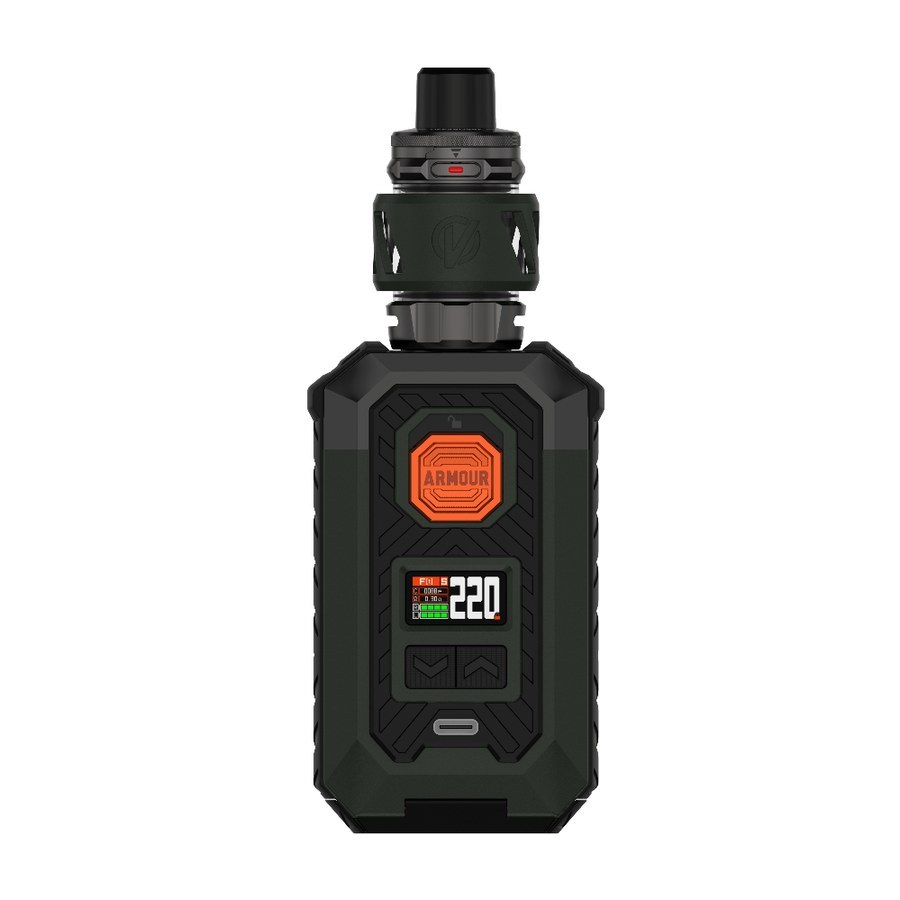

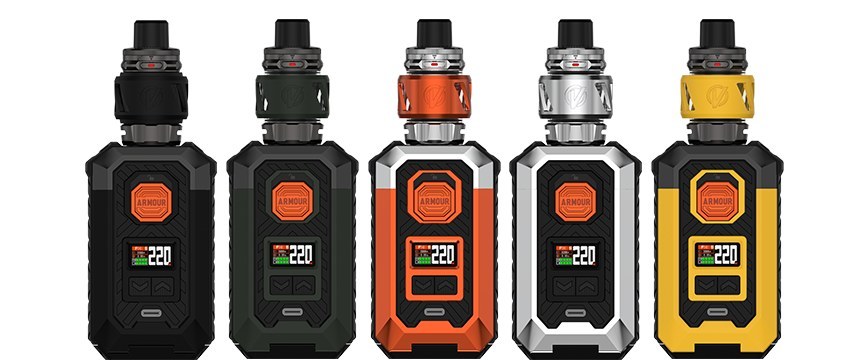

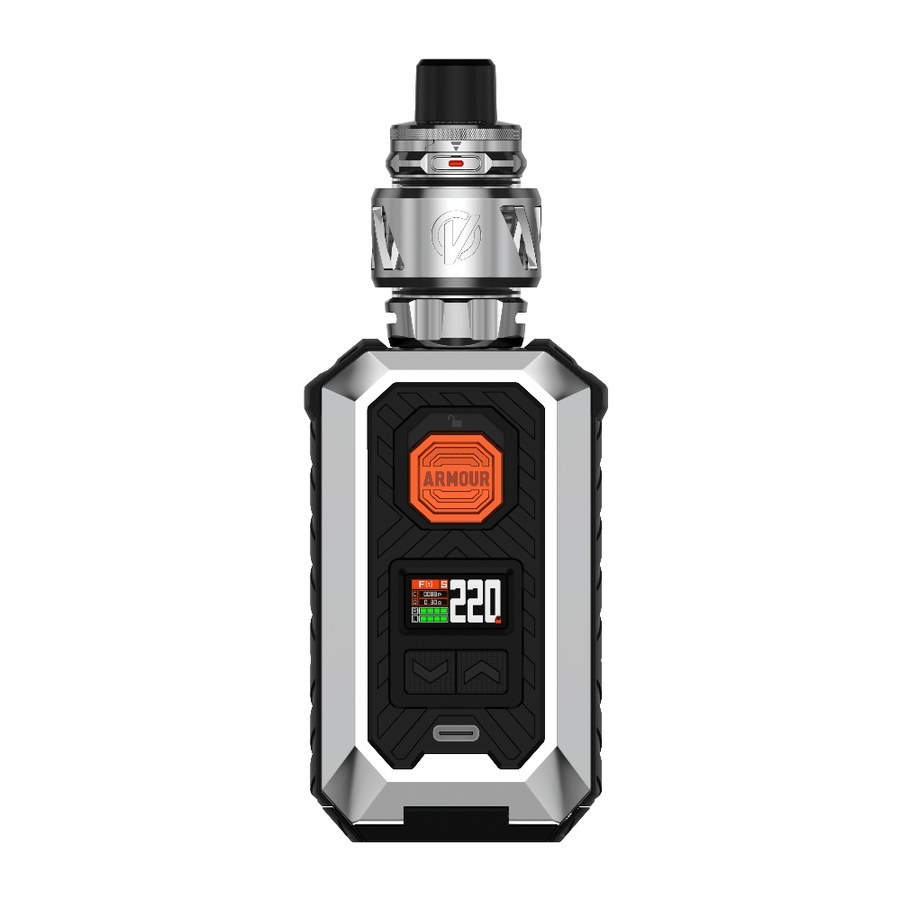

Vaporesso lists nine finishes for the MAX: Black, Green, Orange, Silver, Yellow, Camo Blue, Camo Brown, Cyber Gold and Cyber Blue. We stock Green, Silver and Cyber Blue; the options above show live stock.

What’s in the Box

One ARMOUR MAX mod, an iTank 2, a GTi 0.2Ω mesh coil (fitted), a GTi 0.4Ω mesh coil, a spare glass tube, a tank protective cover (fitted), O-rings, two 18650 sleeves (inside the mod), a Type-C cable and the user manual. Batteries are not included.

Best E-Liquids for the ARMOUR MAX

Sub-ohm GTi coils want high-VG liquid and low nicotine. Our shortfill e-liquids at 3mg or 6mg are the natural fill for the iTank 2; keep nic salts for a pod kit, because a 220W-capable mod on a 0.2Ω coil delivers far more nicotine per puff than an MTL device.

Buy the ARMOUR MAX Near You

Need the ARMOUR MAX today? Our Totton vape shop, Hythe vape shop and Holbury vape shop stock Vaporesso pods, coils and kits, and the team can check which resistance suits your device and e-liquid. Ask us about matched pairs of 21700 cells before you leave. Stock varies by store, so give us a call before you travel. Ordering online instead? See our delivery options.

You May Also Like

• Vaporesso GTi Coils
• Vaporesso iTank T Sub-Ohm Tank
• Vaporesso ARMOUR S Kit
• Vaporesso ARMOUR ULTRA Kit
• Vape Batteries

Frequently Asked Questions

Does the ARMOUR MAX come with batteries?

No. It takes two 21700s, or two 18650s using the supplied sleeves.

What is the maximum wattage of the ARMOUR MAX?

220W.

What coils does the ARMOUR MAX use?

GTi coils in its iTank 2. We stock the 0.15Ω, 0.2Ω, 0.4Ω and 0.5Ω mesh.

Is the ARMOUR MAX waterproof?

It isn’t sold as waterproof; its TPU armour is for drops and scratches. The ARMOUR ULTRA carries IP68 and IP69K ratings.

Can I use 18650 batteries in the ARMOUR MAX?

Yes, two of them, in the 18650 sleeves that ship inside the mod.

Is the ARMOUR MAX good for beginners?

It’s built for experienced DTL vapers. A beginner is better off with a pod kit, or the single-battery ARMOUR S.

What modes does the ARMOUR MAX have?

F(t), Pulse, Eco and temperature control for stainless steel, nickel and titanium, run by the AXON chip.
