Description

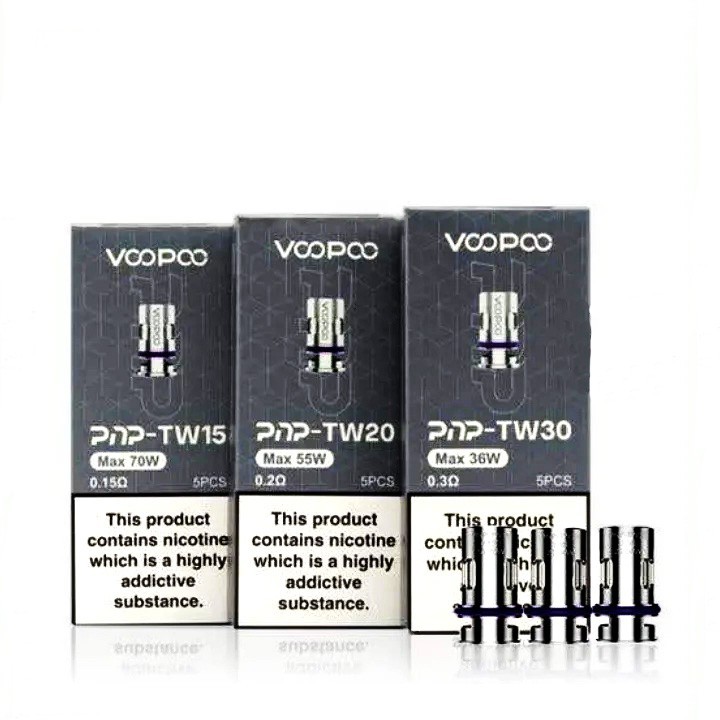

VOOPOO PnP TW Coils: TW15, TW20 and TW30 Dual-In-One Mesh
The VOOPOO PnP TW coils are VOOPOO’s Dual-In-One mesh coils for the original PnP platform, in three resistances: the TW15 at 0.15Ω, the TW20 at 0.2Ω and the TW30 at 0.3Ω. Each box holds five coils of one resistance, and you choose which when you order.
VOOPOO names the TW coils as its suggested coils for the PnP Pod II, and ships the TW30 in the Drag H40. It says the Dual-In-One design heats and vaporises faster, giving rich vapour and fine taste while using less e-liquid. VOOPOO doesn’t explain the construction beyond that, so neither do we.
🔌 VOOPOO PnP-TW15 / TW20 / TW30, 5 pack
✔ Three resistances: TW15, TW20, TW30
✔ Five coils per box
✔ Mesh with Dual-In-One tech
✔ VOOPOO’s suggested coils for the PnP Pod II
✔ TW30 ships in the Drag H40
✔ Original PnP push-fit
TW15, TW20 and TW30 Compared
All three figures below are VOOPOO’s, and the boxes print each coil’s maximum wattage. The devices column is VOOPOO’s own applicable-products list for each coil.
| Coil | Resistance | Wattage | Style | VOOPOO lists it for |
|---|---|---|---|---|

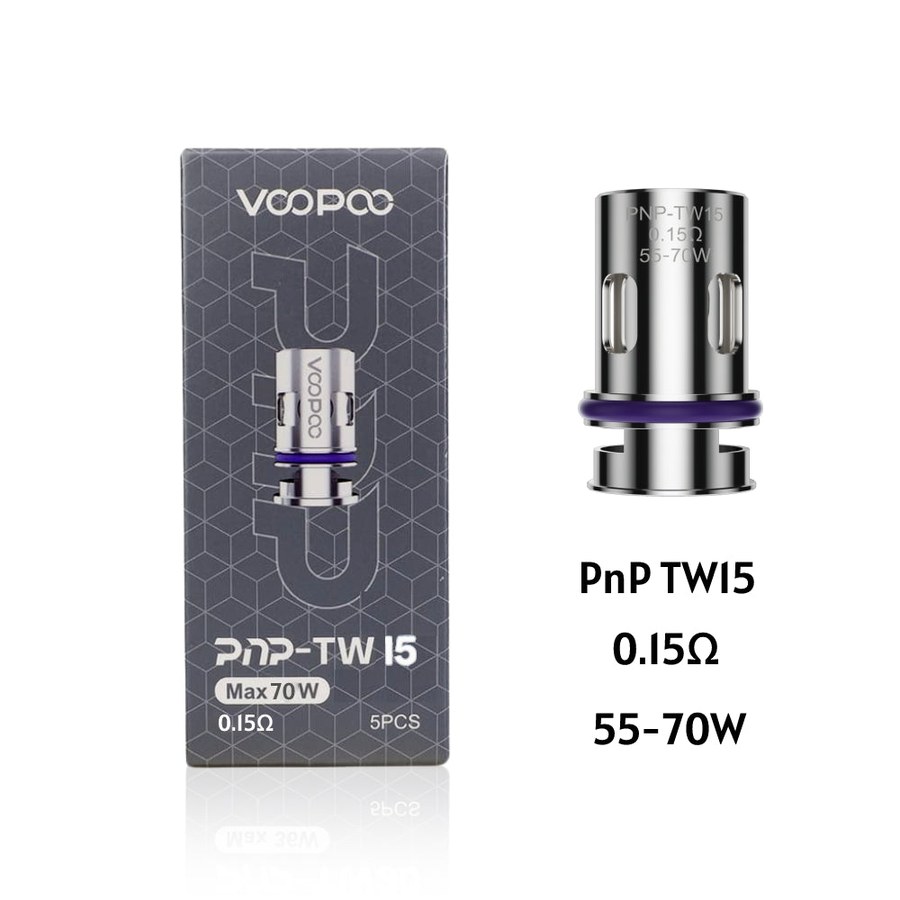

| PnP-TW15 | 0.15Ω | 55–70W | DL | Drag H80S, Drag X, Argus Pro |

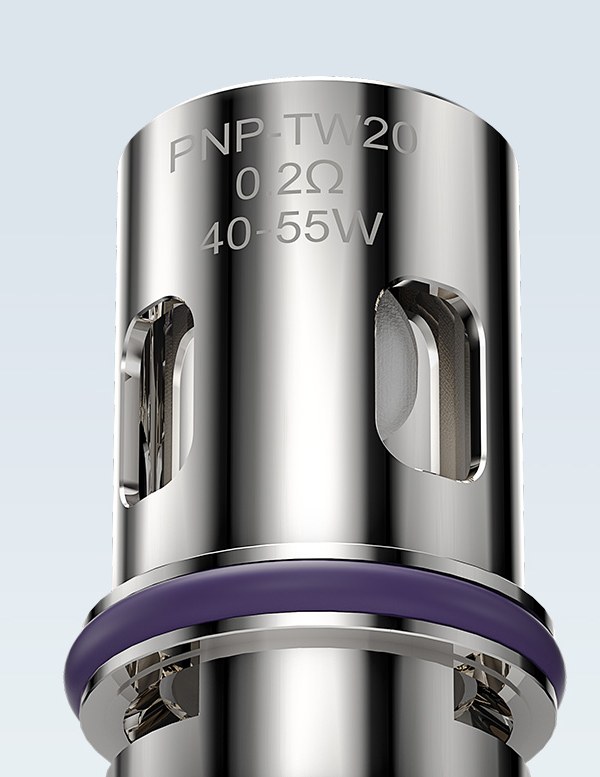

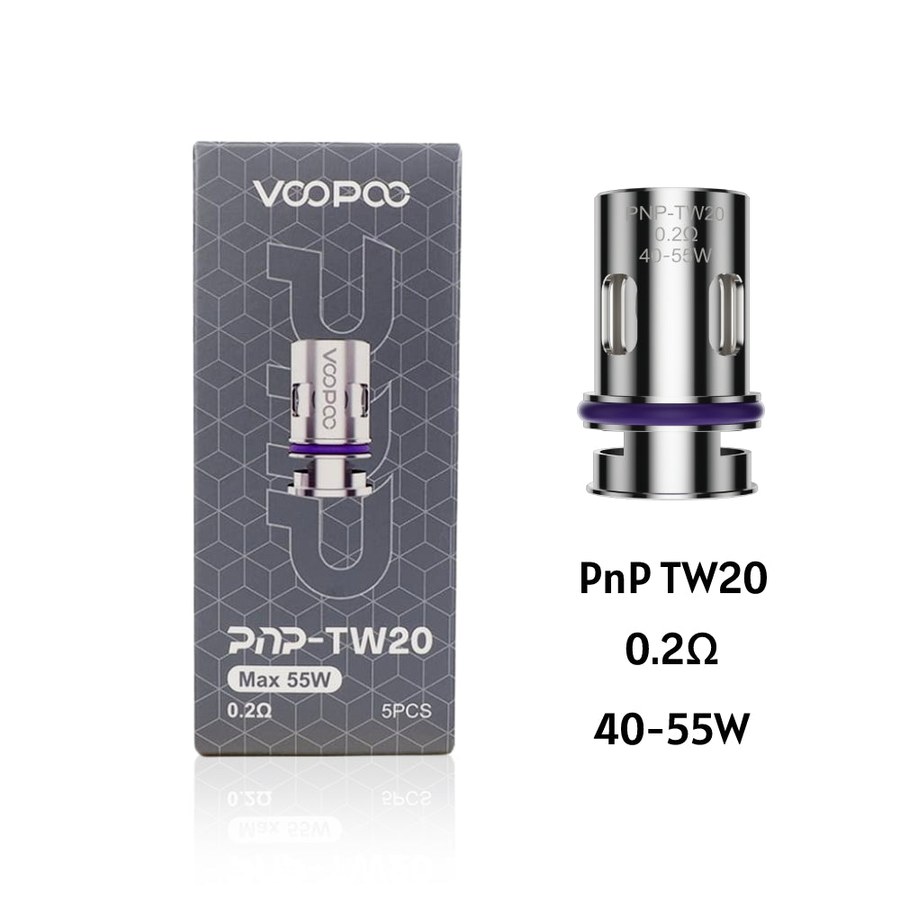

| PnP-TW20 | 0.2Ω | 40–55W | DL | Drag E60, Drag H80S, Drag S, Drag X, Argus Pro |

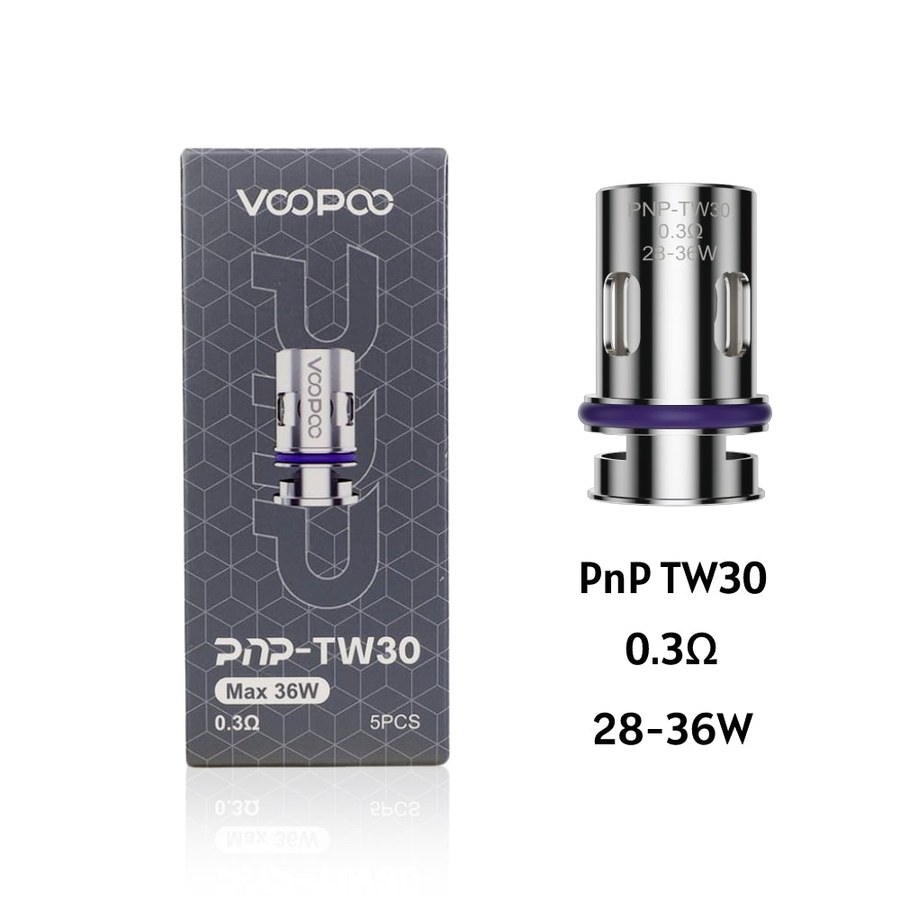

| PnP-TW30 | 0.3Ω | 28–36W | RDL | Drag H40, Drag E60, Drag H80S, Drag S, Drag X, Argus Pro |
Which Pods and Devices Take the TW Coils?
VOOPOO’s PnP Pod II page lists the TW range as its suggested coils, and the Drag S and Drag X pages include them in their coil tables.
The VOOPOO Drag H40 PnP 2 Vape Kit ships with a TW30, and that’s the only TW coil its 40W can run. The PnP Pod 2 is the pod VOOPOO suggests the TW range for, and on higher-powered Drags that use it, the VOOPOO Drag E60 takes the TW20 and TW30 while the Drag H80S takes all three.
On the original Drag S and Drag X, fit TW coils in the VOOPOO PnP Pod: VOOPOO lists the TW20 and TW30 for both, and the TW15 for the Drag X only. The Argus Pro and Argus GT take them too.
Will not fit: the TW15 or TW20 in the Drag H40 (40W maximum) or in the PnP MTL Pod (0.3Ω and above only). VOOPOO doesn’t list the TW30 for the MTL pod either. None of the three fits the Vinci Air or PnP X products.
How to Fit and Prime a PnP TW Coil
- Choose the resistance to match your device’s power – check the table above.
- Take the pod off the device and pull the old coil out of its base.
- Wet the TW coil with liquid through the top and side openings until the cotton is dark all round.
- Push the coil in, fill the pod and leave it five minutes.
- Start at the bottom of that coil’s range: 28W for the TW30, 40W for the TW20, 55W for the TW15.
How Long Does a PnP TW Coil Last?
VOOPOO promotes long coil life and economical use for the Dual-In-One coils, but its figure is based on a larger non-UK pod and isn’t a like-for-like guide here. From the shop: TW30 users often get a week or more per coil, TW20 around five to seven days, and the TW15 the least – like any low-resistance coil, it’s hard on cotton. Replace when the cloud thins or the flavour dulls.
TW Coil Troubleshooting
| Problem | Likely cause and fix |
|---|---|
| TW15 or TW20 feels flat on the Drag H40 | The H40 can’t reach their range. Use the TW30. |
| Spitting on the TW15 | Use a 70/30 liquid and open the airflow fully. |
| Dry hit on the TW30 | You may be above 36W. Stay within the range on the box. |
| Leaking from the pod base | The coil isn’t pushed fully in. Reseat it. |
TW Coils vs VM Coils
| TW range | VM range | |
|---|---|---|
| Tech | Mesh with Dual-In-One | Mesh / single mesh |
| Resistances | 0.15Ω, 0.2Ω, 0.3Ω | 0.15Ω to 0.6Ω |
| VOOPOO’s pitch | Less e-liquid for the same vapour | Kit coils across the Drag and Vinci ranges |
Both fit the same PnP pods. If you already like the VM1 or VM5, the TW30 and TW20 are their closest equivalents.
Best E-Liquids for PnP TW Coils
VOOPOO recommends 10mg or lower for all three TW coils. We’d use 3mg or 6mg in a 70/30 shortfill on the TW15 and TW20; the TW30 is happy with 60/40 and up to 6mg, and some people run 10mg nic salts in it at the bottom of its range. Keep 20mg salts for MTL coils.
Buy PnP TW Coils Near You
Need PnP TW coils today? Our Totton vape shop, Hythe vape shop and Holbury vape shop stock VOOPOO coils, pods and kits, and the team can check which resistance suits your device and e-liquid. We’ll help you pick TW15, TW20 or TW30 for your device. Stock varies by store, so give us a call before you travel. Ordering online instead? See our delivery options.
You May Also Like
Frequently Asked Questions
Which TW coil fits the Drag H40?
The TW30. It comes in the H40 box, and the TW15 and TW20 need more than the H40’s 40W.

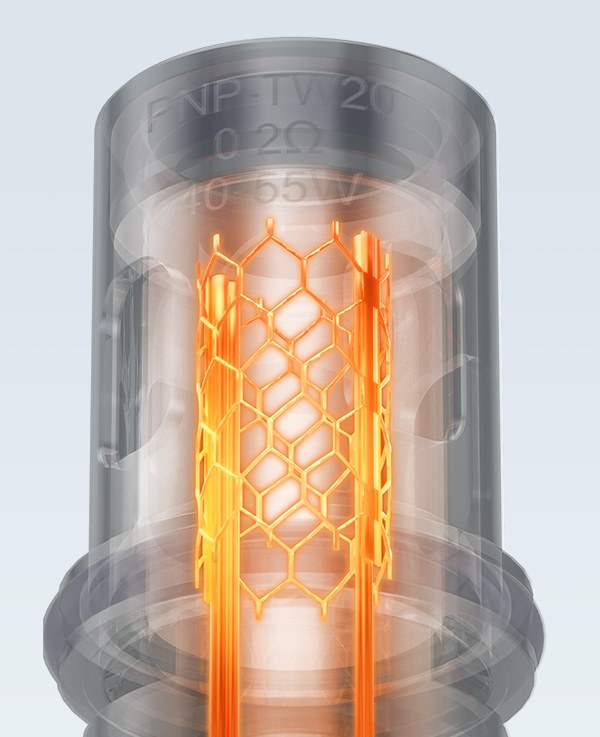

What does Dual-In-One mean?
It’s VOOPOO’s name for the TW coils’ heating design. VOOPOO says it heats faster and uses less e-liquid, but doesn’t publish how it’s built.
Do TW coils fit the PnP Pod 2?
Yes. VOOPOO lists them as the suggested coils for the PnP Pod II.
How many coils are in a box?
Five, all of one resistance.
What is the difference between TW20 and TW30?
The TW20 is 0.2Ω at 40–55W for a full lung hit. The TW30 is 0.3Ω at 28–36W, a restricted lung draw that works on the 40W Drag H40.
