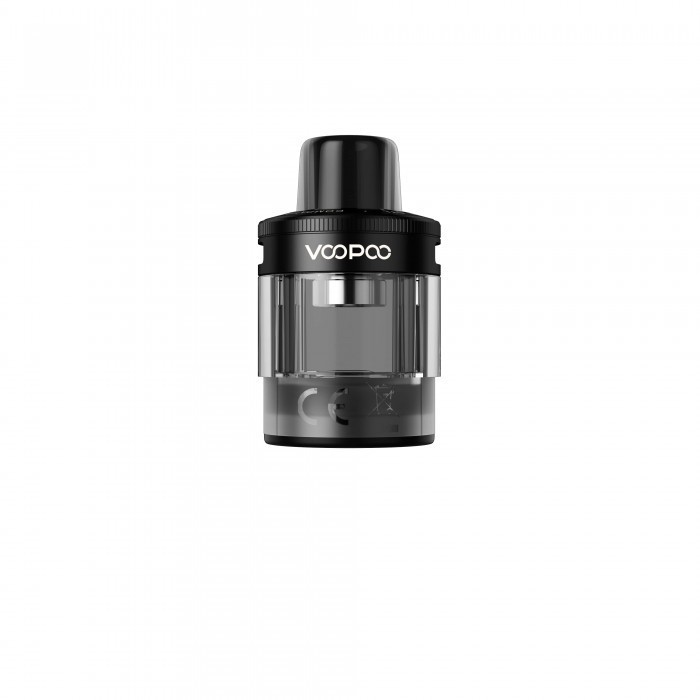

VOOPOO PnP X Cartridge DTL: The Empty Pod for Every PnP X Coil
The VOOPOO PnP X Cartridge DTL is the direct-to-lung empty pod for VOOPOO’s PnP X platform. It comes without a coil: you push in the VOOPOO PnP X coil you want, and when the coil wears you replace that, not the pod. The DTL version takes every coil in the PnP X series, from the 0.15Ω cloud coil to the 1.0Ω.
Airflow comes in from the top, with a 360° adjustable ring and a scale line so you can find your setting again. VOOPOO builds it with four layers of leak protection, keeping the airway, heating zone and air cavity apart. Below: the full coil table, what to fit for a proper lung hit, and the priming routine VOOPOO recommends.
🔌 VOOPOO PnP X Cartridge DTL
✔ Empty pod – coil sold separately
✔ Takes all PnP X coils
✔ Top airflow with 360° adjustable ring
✔ Four-layer leak protection
✔ Magnetic connection
✔ Fixed DTL mouthpiece
PnP X Coils for the DTL Cartridge
Every PnP X coil fits this cartridge. VOOPOO marks the three lowest resistances as the best match for the DTL version:
| PnP X coil | Wattage | Style | Best for this pod? |
|---|---|---|---|
| 0.15Ω | 60–80W | DTL | Yes – VOOPOO’s pick |
| 0.2Ω | 40–60W | DTL | Yes – VOOPOO’s pick |
| 0.3Ω | 32–40W | DTL or RDL | Yes – VOOPOO’s pick |
| 0.45Ω | 25–32W | RDL | Fits |
| 0.6Ω | 18–23W | MTL and RDL | Fits |
| 0.8Ω | 12–16W | MTL | Fits |
| 1.0Ω | 10–13W | MTL | Fits |
Which Devices Does the PnP X Cartridge DTL Fit?
VOOPOO lists the PnP X cartridges for the Drag S2 and Drag X2, and its PnP X platform chart adds the Argus Pro 2 and Doric 60 Pro.
The VOOPOO Drag S2 Pod Kit and VOOPOO Drag X2 Pod Kit are the two devices VOOPOO names on the cartridge itself, and both take PnP X cartridges on a magnetic connection. VOOPOO’s PnP X platform chart also lists the Argus Pro 2 and Doric 60 Pro.
For a lung hit on either Drag, fit the PnP X 0.3Ω or lower from our PnP X coil range.
No magnetic PnP X device? The same coils go in the VOOPOO PnP X Pod Tank DTL, which screws onto any 510 mod.
Will not fit: the Drag X Plus Pro or Argus XT – VOOPOO doesn’t confirm either for this cartridge. Original PnP coils (VM, TW, TR and the rest) don’t fit PnP X cartridges.
How to Fit a Coil and Prime the PnP X DTL
- Pull the cartridge off the device’s magnets.
- Push the PnP X coil into the base of the pod. It only goes in one way round, and it should sit flush with the base.
- Open the side filler plug and fill the pod to about two-thirds, as VOOPOO advises.
- Close the filler plug and let the pod stand for five minutes so the cotton soaks through.
- Refit the pod, set the airflow ring and start at the bottom of your coil’s wattage range.
How Long Does a Pod Last?
The pod itself lasts for months – it’s the coil that wears. VOOPOO markets PnP X coils on long life and says each can handle a large volume of e-liquid before burning or leaking, with the caveat that lab results differ from everyday use. In the shop, DTL vapers on the 0.15Ω and 0.2Ω change coils most often; the 0.3Ω goes noticeably longer. Replace the pod if it cracks or the filler plug stops sealing.
PnP X DTL Troubleshooting
| Problem | Likely cause and fix |
|---|---|
| Leaking from the base | The coil isn’t pushed fully in. It only fits one way – take it out and reseat it flush. |
| Dry hit on a new coil | The pod wasn’t primed. Fill to two-thirds and wait the full five minutes. |
| Spitting at high wattage | Liquid too thin for a sub-ohm coil. VOOPOO specifies 50–70% VG. |
| Weak vapour | Open the airflow ring, or step down to a lower-resistance coil at higher wattage. |
| Pod not recognised | Clean the magnetic contacts and check the coil is seated. |
PnP X Cartridge DTL vs MTL
| DTL cartridge | MTL cartridge | |
|---|---|---|
| Coils | All PnP X coils | PnP X 0.3Ω and 0.6Ω only |
| Mouthpiece | Fixed DTL | Replaceable 510 drip tip |
| Nicotine (VOOPOO) | 10mg or lower | Higher strengths allowed |
| Devices | Drag S2, Drag X2, Argus Pro 2, Doric 60 Pro | Same four |
Both pods fit the same devices, so the choice is about how you vape. If you want a tight draw with nic salts, see the VOOPOO PnP X Cartridge MTL.
Best E-Liquids for These Pods
VOOPOO’s spec for this cartridge is 50–70% VG with nicotine at 10mg or lower. That rules out high-strength nic salts on the low-resistance coils: use 3mg or 6mg freebase instead. Our 10ml e-liquids are the place to look for freebase; read nic salts vs freebase if you’re unsure which nicotine type you need.
Buy PnP X Pods and Coils Near You
Need PnP X DTL pods or coils today? Our Totton vape shop, Hythe vape shop and Holbury vape shop stock VOOPOO pods, coils and kits, and the team can check which resistance suits your device and e-liquid. We’ll help you pick a PnP X coil for your Drag. Stock varies by store, so give us a call before you travel. Ordering online instead? See our delivery options.
You May Also Like
- VOOPOO PnP X Coils
- VOOPOO PnP X Cartridge MTL
- VOOPOO Drag X2 Pod Kit
- VOOPOO Drag S2 Pod Kit
- VOOPOO PnP X Pod Tank DTL
Frequently Asked Questions
Does the PnP X Cartridge DTL come with a coil?
No. It’s an empty pod; fit any PnP X coil.
Which coils fit the PnP X DTL pod?
Every PnP X coil: 0.15Ω, 0.2Ω, 0.3Ω, 0.45Ω, 0.6Ω, 0.8Ω and 1.0Ω. VOOPOO rates the 0.15Ω, 0.2Ω and 0.3Ω best for it.
Do original PnP coils fit a PnP X cartridge?
No. PnP X cartridges take PnP X coils.
Does it fit the Drag X Plus Pro?
VOOPOO doesn’t list the Drag X Plus Pro for this cartridge, so we don’t recommend it.
How do I prime a PnP X coil?
Fill the pod to two-thirds, close the plug and leave it five minutes before vaping.
Which PnP X coil is best for DTL?
The 0.3Ω for a balanced lung hit; the 0.2Ω or 0.15Ω for maximum vapour.
Is there a 510 version of the PnP X Cartridge DTL?
Yes. VOOPOO’s PnP X Pod Tank DTL takes the same coils on a 510 threaded base, and we stock it.
